| Brand Name : | KonDaSin |
| Model Number : | YDL-300DT |
| Certification : | ISO9001 |
| Price : | Contact us |
| Supply Ability : | 5+set+per month |
| Delivery Time : | 15 days |

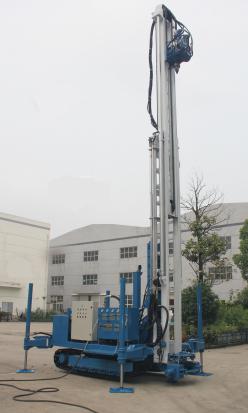

Multifunctional Full Hydraulic Rig Anchor Drill Rig For Deep Water Well Project
1.YDL-300DT Hydraulic drilling rig is a multifunctional full hydraulic drilling rig for deep water well hole project and seize the new marke
2.This machien can use two 3m drill rods one time because of the stoke of mast is 7m,so can reduce the time of adding drill rod,also can reduce the labour intensity.
The equipment,the drilling techniques way of the following:
a. Dry auger drill
b. Down-The-Hole hammer drill
c. Mud forward circle drill
d. Medium reverse circle drill
e. ODEX tools (casing pipe following) drill with DTH hammer
| Hole diameter | Φ150—Φ400mm | |
| Hole depth | 300-400 m | |
| Apply Rock hardness | ｆ=6—20 | |
| Air compressor pressure | 1.2—4MPa | |
| Air compressor flow | 16—50m3/min | |
Rotary speed | 0～25r/min,4,9,12,14,19,24, 25,28,38,48,50,63,76,101,127r/min | 0～39r/min,6,14,18,22,30,37,39,44,59,75,78,99, 119,159,200r/min |
| Torque N.M | 13900Nm(17MPa) | 10000Nm(17MPa) |
| Max Pull up capacity | 25T | |
| Pull up speed | 0-3m/min；3,3.74,7.54,15.08,18.1,21.84m/min | |
| Feeding capacity | 12.8T | |
| Feeding speed | 0-5.9m/min；5.9,7.34,14.78,29.57,42.83m/min | |
| Feeding cyliner stroke | 3500mm | |
| Max rotary head stroke | 7000mm | |
| Mast sliding stroke | 1500mm | |
| Mast working angle | -5～90° | |
| Min height to the ground | 360mm | |
| Winch pull up capacity | 1.5T | |
| Winch pull up speed | 20m/min | |
| Winch wireline dia | ф10mm | |
| Winch wireline length | 50m | |
| Platform turning method | Manul (pin) | |
| Crawler move speed | 1.5ｋm/h | |
| Climb ability | 25° | |
| Electric Motor | 55+18.5KW | |
| Diesel Type | 120kw,1500r/min | |
| Overall(L×W×H) mm | 7200×2100×2750(transportation) | |
| Weight | 10500kg | |
● The drill rig adopt telescoping mast.Stroke is 7m which is
available to use 6m drill rod
one time.
● Drill rig adopt 4 pieces long jacks which is easy to load the
truck with no crane.
● The drill installed 1.5 ton winch.
● Rotate speed is adjustable which make the drill available for
variety of drill techniques.
|
|
