| Brand Name : | KonDaSin |
| Model Number : | YDL-300DT |
| Certification : | ISO9001 |
| Price : | Contact us |
| Supply Ability : | 5+set+per month |
| Delivery Time : | 15 days |

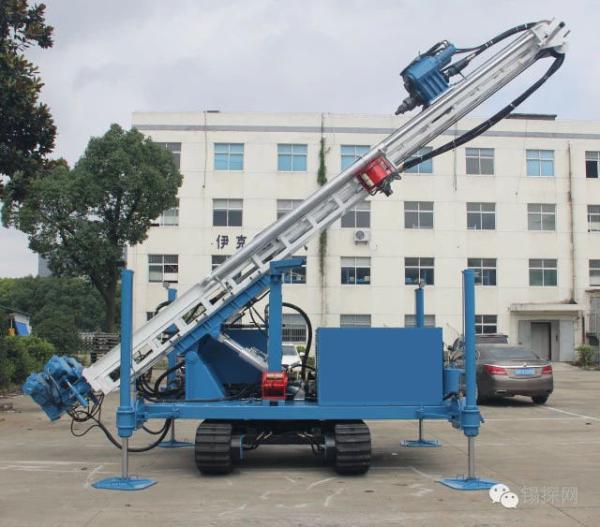

Full Hydraulic Water Well Rig Anchor Drilling Machine 7m Stroke Larger Cylinders
4.The drill installed a hydraulic clamp & breakout system in order to automatic wrench the drill pipes and tools.
The equipment,the drilling techniques way of the following:
a. Dry auger drill
b. Down-The-Hole hammer drill
c. Mud forward circle drill
d. Medium reverse circle drill
e. ODEX tools (casing pipe following) drill with DTH hammer
| Hole diameter | Φ150—Φ400mm | |
| Hole depth | 300-400 m | |
| Apply Rock hardness | ｆ=6—20 | |
| Air compressor pressure | 1.2—4MPa | |
| Air compressor flow | 16—50m3/min | |
Rotary speed | 0～25r/min,4,9,12,14,19,24, 25,28,38,48,50,63,76,101,127r/min | 0～39r/min,6,14,18,22,30,37,39,44,59,75,78,99, 119,159,200r/min |
| Torque N.M | 13900Nm(17MPa) | 10000Nm(17MPa) |
| Max Pull up capacity | 25T | |
| Pull up speed | 0-3m/min；3,3.74,7.54,15.08,18.1,21.84m/min | |
| Feeding capacity | 12.8T | |
| Feeding speed | 0-5.9m/min；5.9,7.34,14.78,29.57,42.83m/min | |
| Feeding cyliner stroke | 3500mm | |
| Max rotary head stroke | 7000mm | |
| Mast sliding stroke | 1500mm | |
| Mast working angle | -5～90° | |
| Min height to the ground | 360mm | |
| Winch pull up capacity | 1.5T | |
| Winch pull up speed | 20m/min | |
| Winch wireline dia | ф10mm | |
| Winch wireline length | 50m | |
| Platform turning method | Manul (pin) | |
| Crawler move speed | 1.5ｋm/h | |
| Climb ability | 25° | |
| Electric Motor | 55+18.5KW | |
| Diesel Type | 120kw,1500r/min | |
| Overall(L×W×H) mm | 7200×2100×2750(transportation) | |
| Weight | 10500kg | |
● The drill rig adopt telescoping mast.Stroke is 7m which is
available to use 6m drill rod
one time.
● Drill rig adopt 4 pieces long jacks which is easy to load the
truck with no crane.
● The drill installed 1.5 ton winch.
● Rotate speed is adjustable which make the drill available for
variety of drill techniques.
|
|
