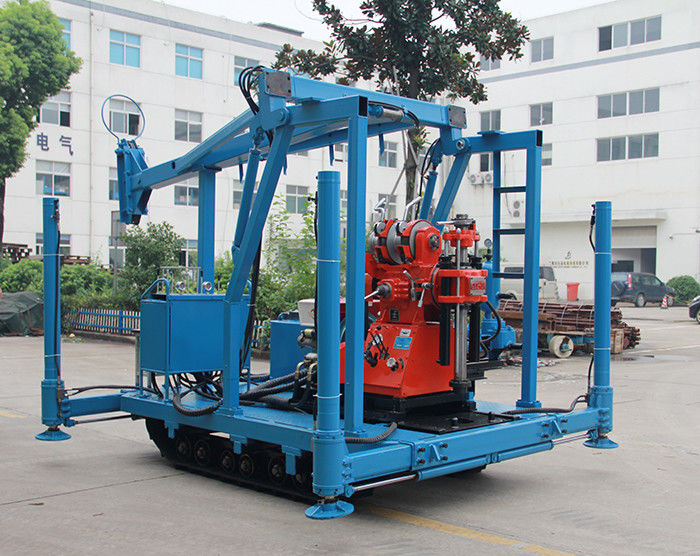

Diamond Machine Core Drilling Rig Soil Investigation Rock Cutting Hydraulic Chuck
1. GYQ-200A is a spindle machine with mechanical driven and
hydraulic chuck,it can be used in exploration prospecting, blast
hole drilling, core drilling and inspect hole of concrete etc.
2. With compact, small and light makes it more convenient to
disintegrate and move so it is easy to relocate and operate in
mountain areas.
3. With hydraulic feeding device, reduce the labor intensity of workers.It also with hydraulic chuck,strong and steady clamping force
4. The drilling rig is mainly used for diamond and carbide drilling of solid bed.
| Hole depth | 200m | ||
| Rod dia | Φ63mm drive rod | ||
| Hole angle(°) | 360° | ||
| Spindle speed | Forward speed:55;96;152;210;262;455;718;990rpm | ||
| Reverse speed:44/206rpm | |||
| Stroke of spindle | 500mm | ||
| Max .lifting capacity | 49KN | ||
| Max .feeding capacity | 36KN | ||
| Max .distance from the spindle lower to the earth surface | 600mm | ||
| Hoist | Max .lifting capacity (single line): | 25KN | |
| Dum speed | 34,59,94,129rpm | ||
| Lifting speed: | 0.38;0.66;1.05;1.44m/s | ||
| Move back cylinder device | Cylinder stroke | 465mm | |
| Move back distance | 330mm | ||
| Weight | 900kg (not including engine) | ||
| Dimensions (L×W×H) | 1860*780*1480mm | ||
| POWER | Y160L-4 electric motor | Power:15kw, 1470rpm | |
| 2100 diesel | Power:17.6kw, 1800rpm | ||
1. The rig and water pump is seperated, drilling rig is equipped with a separate power, can improve the output torque of the drill, especially the pump lose power in the deep hole, avoiding accidents in the hole.
2. The rig can be applicable to the low speed big diameter drilling besides the rapid speed drilling.
3. Drill rod:63x59 drilling rod adopted,high rigidity and strong delivery torque.
4. Mud pump:Equip mud pump with flow 160L/min,save cost and also make the structure compact.
|
|
