| Brand Name : | KonDaSin |
| Model Number : | GXY-1C |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 50sets/one year |
| Delivery Time : | 7 working days |
| Certification : | ISO9001 |

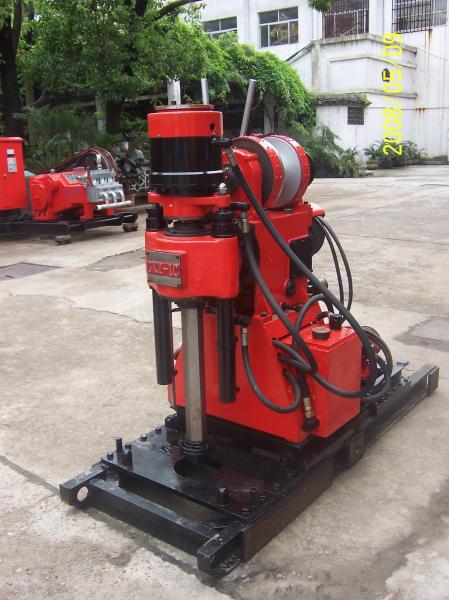

Exploration Machine Core Drilling Rig Core Sample Diamond Bit Various Chassis
1. GXY-1C drilling rig is mainly applied to engineering geological exploration, survey and exploration of solid mineral deposit, inspecting hole of various concrete structure, etc.it is also could for explore coal mine.
2. With hydraulic feeding device, reduce the labor intensity of workers.It also with hydraulic chuck,strong and steady clamping force
3. The rig is light and easy to disassemble. It is composed of 9 components with the largest weighting 100Kg so it is easy to relocate and operate in mountain areas.
4. The 100 meter vertical drilling rig that can be equipped with diesel engine or electric motor as the driving force.
5. The drilling rig is mainly used for diamond and carbide drilling of solid bed.
| Hole depth | 50-150m | |
| Hole dia | 150-75mm | |
| Hole angle(°) | 360° | |
| Spindle speed | Forward speed:82;220;465;883rpm | |
| Reverse speed:61rpm | ||
| Stroke of spindle | 500mm | |
| Max .lifting capacity | 25KN | |
| Max .feeding capacity | 20KN | |
| Max .distance from the spindle lower to the earth surface | 600mm | |
| Hoist | Max .lifting capacity (single line): | 15KN |
| Lifting speed: | 0.22;0.95;1.95;5.3m/s | |
| Power | Electric motor: | 11kw,1500rpm |
| Diesel engine | 13kw,2200rpm | |
| Weight | 650kg | |
| Dimensions (L×W×H) | 1980×970×1400mm | |
1. The rig and water pump is seperated, drilling rig is equipped with a separate power, can improve the output torque of the drill, especially the pump lose power in the deep hole, avoiding accidents in the hole.
2. The rig can be applicable to the low speed big diameter drilling besides the rapid speed drilling.
3. Drill rod:53x59 drilling rod adopted,high rigidity and strong delivery torque.
4. Drill is suitable in the mountain area because it can be carried easily for light weight,the biggest apparatus is in 200kg.
5. Mud pump:Equip mud pump with flow 160L/min,save cost and also make the structure compact.
|
|
