| Brand Name : | KonDaSin |
| Model Number : | GXY-1D |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 50sets/one year |
| Delivery Time : | 7 working days |
| Certification : | ISO9001 |

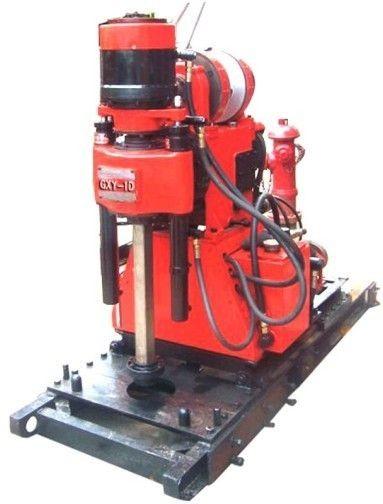

Core Drilling Rig Geological Machine Diamond Core Rig Core Mine Hydraulic Feeding
1. GXY-1D is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.
2. The drill is suitable in the mountain area because it can be carried easily for light weight
3. With hydraulic feeding device, reduce the labor intensity of workers.It also with hydraulic chuck,strong and steady clamping force
4. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
5. The 100 meter vertical drilling rig that can be equipped with diesel engine or electric motor as the driving force.
| Type | GXY-1D | |
| Hole depth | 50-150m | |
| Rod dia | 150-75mm | |
| Hole angle(°) | 360° | |
| Spindle speed | Forward speed:61;163;338;654 rpm | |
| Reverse speed:45 rpm | ||
| Stroke of spindle | 500mm | |
| Max .lifting capacity | 25KN | |
| Max .feeding capacity | 20KN | |
| Max .distance from the spindle lower to the earth surface | 600mm | |
| Hoist | Max .lifting capacity | 15KN |
| (single line): | ||
| Lifting speed: | 0.22/0.95/1.95/5.3 m/s | |
| Power | Electric motor: | 11kw,1500 rpm |
| Diesel engine | 13kw,2200 rpm | |
| Weight | 650kg | |
| Dimensions (L×W×H) | 1980×970×1400mm | |
| Drilling rod clamping type | Hydraulic chuck type | |
| Making-way type for hole collar | Fluid control of power head back shift | |
1. GXY-1D drilling has large input power and output torque. Its drilling capacity is strong. Its capacity of dealing with accidents is good. It has an oil pressure feeding structure and its labour intensity is low.
2. The drill and the pump are transmitted separately, improving the output torque and avoiding the accidents in the hole
3. Drill is suitable in the mountain area because it can be carried easily for light weight,the biggest apparatus is in 200kg.
4. By using hydraulic chuck, it is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move directly.
|
|
