Portable Construction Anchor Drilling Rig Deep Foundation Reinforce Side Slope
YG50 is a kind of full hydraulic anchor drilling rig with large torque,long stoke and high working efficiency.
It is applied to reinforce side-slope for water conservancy project, water power station project, railways and highways
In addition, for deep foundation pit of high building and groundwork reinforcing engineering in urban construction site.

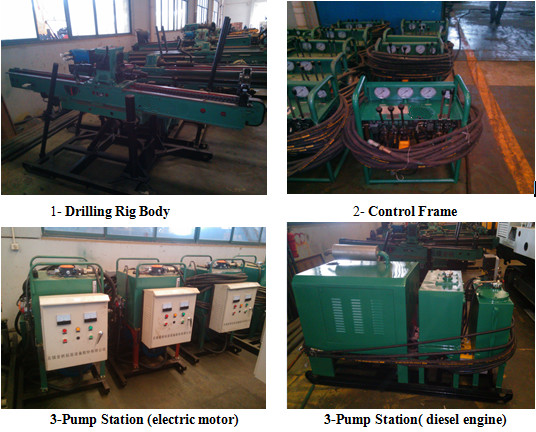

Rig structure is separate group design:main frame,pump station and control station, it assures good disassembling, rapid and convenient mount and transport, best working environment and lower labor strength.
Transmission, built in the top drive power head, has two speed range high and low. It can meet the requirements of both DTH hammer drilling and carbide bit drilling.
it also can be used to drill high-pressure jet grouting holes.
| Hole depth | 40-60m |
| Hole Diameter | Φ100~165 mm |
| Power Head Output Rotation Speed (forward or reverse) | 50 ~ 120 rpm |
| Power Head Max. Output Torque | 2500 Nm |
| Max .lifting capacity | 25KN |
| Power Head Feeding Stroke | 1800 mm |
| Max. Power Head Lifting Capability | 30kN |
| Max. Power Head Thrust Force | 15kN |
| Mast Sliding Compensating Stroke | 500 mm |
| Drill rod specification | Φ89*1.5m,Φ73*1.5m |
| Climb Ability | 20° |
| Overall dimension(transport state)(mm | 2700×1150×1400 |
| Diesel engine power (kW) | 18.5 |
| Weight (kg) | 1150 (3 parts) |
1. Extension mechanism in the output spindle of top power head can protect drilling tools effectively.
2. It can increase the hole inclination angle range and drill elevation angle holes,which setting the top drive head and hold top plate toward the opposite direction.
3. Rig structure is separate group design:main frame,pump station and control station, it assures good disassembling, rapid and convenient mount and transport, best working environment and lower labor strength.
4. Transmission, built in the top drive power head, has two speed range high and low. It can meet the requirements of both DTH hammer drilling and carbide bit drilling.
5. The rotary head has large torque,long stoke and high working efficiency.
6. This type of the rig has a wide scope of drilling angle from 10˚-90˚,the slide frame can slide and move.
|
|
