Geotechnical Rig Anchor Drilling Rig Rod lifting device high speed Long Stroke
YGL-150R drilling rig is one kind of full hydraulic power head
drilling rig. It is mainly applied in :
1. drilling work of GSHPs geothermal hole;
2. drilling the drain hole and large tonnage prestressed anchoring
hole of the geotechnical
engineering such as the side slope of dam construction, railways,
highways, etc.;
3. the guiding hole of high pressure jet grouting in gravel area;
4. the blast hole; the anchoring hole of high buildings deep
basement foundation;
5. the anti-floating anchoring hole;
6. the foundational reinforcing hole of interior architecture; the
grouting reinforcing hole; the reinforcing hole of road or dam
foundation; and the anchoring hole of landslide preventing.
This one is type of full hydraulic crawler drilling rig with great rotary torque and long feeding stroke distance of the drilling rig make the speed of borehole faster, the disposal capability of accident better and efficiency of drilling work higher.
Avaliable for variety of drilling techniques:
Dry Auger-----------------------Dry soil
DTH Hammer------------------Rock area
Mud Casing Drill--------------sand or loosen area
DTH ODEX Drill--------------gravel or broken rock area
| Drill size (mm) | Ф73 ~ Ф114 * 3000 |
| Power head output speed (General) (rpm) | 25/50, 51/102 |
| (acceleration) (rpm) | 41/82, 83/166 |
| Power head maximum output torque (Nm) | 8500 |
| Power head stroke (mm) | 2800 (customizable 3800mm) |
| Power head maximum pull force (kN) | 65 |
| Power Head biggest feeding force (kN) | 45 |
| Mast slip stroke (mm) | 800 |
| On the car slewing angle (°) | -30 ~ 90 |
| Gradeability (°) | 20 ° |
| power (motor / diesel optionally a) | |
| Diesel Power (kW) | 71 |
| Motor Power (kW) | 37 + 18.5 |
| Rig outside dimensions (transport status) (mm) | about 6100 × 2000 × 2300 |
| Rig mass (kg) | about 8000 |
| Options | a) 1.1ton tool winch (and crane); b) mud pump; c) wet dust removal device; d) drill mention cited device; |

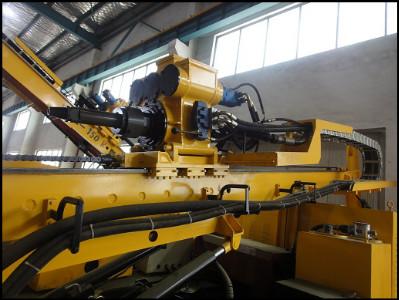

1. The gearshift mechanism of power head adopts the hydraulic shift method which has the point of the quickness, convenience, reliability, etc. of the gearshift.
2. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
3. The equipment is mounted on the track chassis with the turning platform mechanism which makes the moving and walking more and more convenient.
4. The rig can be installed with a rod lifting device (optional) to join drill rods.
5. The drilling rig is suitable for a variety of drill technique and methods, such as the rotary drill, auger drill, air drive DTH hammer impact and so on.
|
|
