| Brand Name : | KonDaSin |
| Model Number : | Rotary drilling kelly bar |
| Certification : | ISO9001 |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 50 Set/Sets per Month kelly bar for rotary rig |
| Delivery Time : | 20 working days |

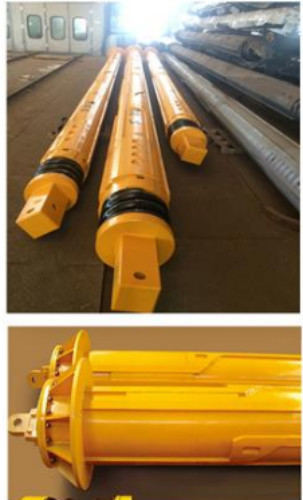

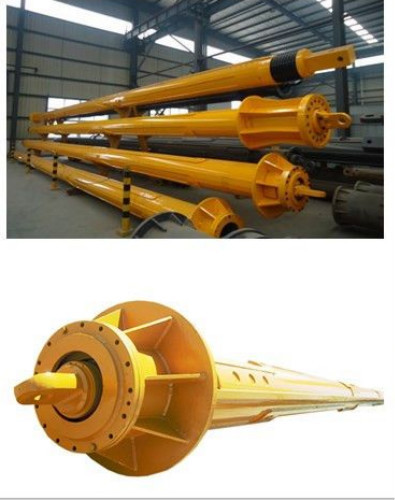

Spare Parts Kelly Bar Piling Foundation Heat Treatment Forging Steel Material
Teleskopic Kelly bars transfer torque and crowd force from the rotary drive to the drilling tool.
We select raw materials and forging parts such as drive stub to assure the reliable quality Strictly.
The key parts of kelly bar such as drive key is widely used heat treatment to improve wear resistance.
A kelly bar in a system of drive keys and lock recesses weld onto their outer surface which has 2-5 telescopic tubular sections.
In each section,normally kelly bars are matched with a total of 6 drive keys.
With High torsional coefficient,the compression and vibration resistance of kelly bar is higher than average level,high efficient in rock drilling construction;
Frictional kelly bar is convenient and fast to lift the bar because it does need to lock the joint of its inner and outer lining .
Non-stair key, friction transmission the outside key is made by highly wear-resisting tempering steel.
For layer of soft ground and mud, mud, (mud) sand, gravel
Interlocking kelly bar has 3 rigid parts between drilling pipes to transfer greater pressure from embedding cylinder.
It is of great pressure transmission and good anti-contortion perfomance,even at the hard geologic condition it can transfer greater pressure and drill in.
Stair key, organization transmission, the outside key is made by highly wear-resisting tempering steel.
For soft fromations, (weak) weathered rock, hard strata construction.
| Name of product | External diameter (mm) | Pitch No | Length section (m) | Rated torque (KN*M) | Depth (m) |
| Friction kelly bar | 355 | 4,5 | 10-13 | 180 | 36-60 |
| 377 | 4,5 | 10-14 | 200 | 36-65 | |
| 406 | 4,5 | 10-15 | 210 | 36-70 | |
| 419 | 4,5 | 10-15 | 250 | 36-70 | |
| 440 | 4,5 | 10-15 | 250 | 36-70 | |
| 470 | 4,5,6 | 10-17 | 280 | 36-95 | |
| 508 | 4,5,6 | 10-18.5 | 320 | 36-103 | |
| 530 | 4,5,6 | 10-19 | 380 | 36-106 | |
| 575 | 4,5,6 | 10-21 | 420 | 36-120 | |
| 630 | 4,5,6 | 10-21 | 450 | 36-120 |
| Name of product | External diameter (mm) | Pith No | Length section (m) | Rated torque (KN*M) | Depth (m) |
| Interlocking kelly bar | 355 | 3 | 10-13 | 180 | 27-36 |
| 377 | 3,4 | 10-12.5 | 220 | 27-44 | |
| 406 | 3,4 | 10-15 | 230 | 27-57 | |
| 419 | 3,4 | 10-15 | 250 | 27-57 | |
| 440 | 3,4 | 10-15 | 250 | 27-57 | |
| 470 | 3,4 | 10-17 | 280 | 27-65 | |
| 508 | 3,4 | 10-17 | 320 | 27-65 | |
| 530 | 3,4 | 10-20 | 380 | 27-76 | |
| 575 | 3,4 | 10-21 | 420 | 27-80 | |
| 630 | 3,4 | 10-21 | 450 | 27-80 |
1. The advantages of our Kelly bar, such as low weight, high strength, high abrasion-resistance, high-reliability are safeguarded.
2. Main body made of alloy hot-treated specially enjoy both high hardness and perfect welding performance, high abrasion-resistance leads to high-reliability.
3. Heat treatment is widely used in the key parts such as drive key to improve wear resistance
4. Small clearance and high-precision mating of the drill pipe ensure its good working order and service performance.
5. Fulfill the rotary drilling rig full torque operation.
Kelly bars is to transfer to the drilling tools both the torque and the pressure produced by the drilling machine,it candrill in dense sand and gravel and weak to strong rock.
|
|
