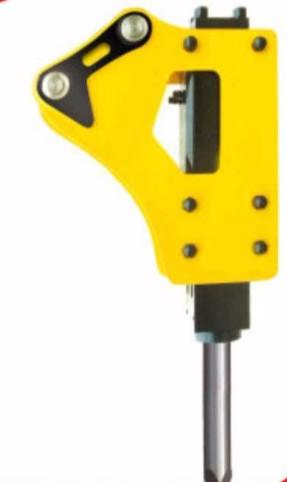

Hydraulic Breaker Excavator Attachment Rock Breaker Excavator Tools
Long Life
Breaker hammer can more effectively clean the floating stones and the soil in the rock gaps in the role of excavating the foundation of the building. The principle of selecting a hydraulic breaker is to select the most suitable hydraulic breaker according to the model of the excavator and the environment of the operation.
Our hydraulic breaker (hydraulic hammer) are applicable to a wide rang of excavators which from1.2 to100 ton,now it has become an important tool for hydraulic excavators. Some people have installed hydraulic breakers on backhoe loaders (also known as two-headed) or wheel loaders for crushing operations.
Model silenced | Operating Weight (kg/lbs) | Max Oil(bar/lbs) | Drive Oil(L/min) | Working Oil Pressure (Bar/psi) | Weight of chisel(kg) | Length of chisel(mm) | Diameter of chisel(mm | Impact Rate (bpm) | Impact power(kg.m) | Excavator Weight (ton) | |
| KDD68 | 320/705 | 170/2465 | 30-60 | 90-130 | 1377-1885 | 18 | 700 | 68 | 550-950 | 74 | 4-6 |
| KDD75 | 430/950 | 170/2465 | 40-70 | 100-130 | 1422-1885 | 23 | 710 | 75 | 550-950 | 100 | 6-9 |
| KDD100 | 870/1920 | 190/2755 | 80-110 | 150-170 | 2175-2465 | 54 | 1000 | 100 | 450-700 | 149 | 9-16 |
| KDD135 | 1560/3037 | 210/3045 | 120-150 | 160-180 | 2320-2610 | 115 | 1300 | 135 | 400-700 | 238 | 18-25 |
| KDD140 | 1830/4038 | 210/3045 | 120-180 | 160-180 | 2320-2610 | 126 | 1300 | 140 | 350-600 | 459 | 18-25 |
| KDD155 | 2650/5840 | 240/3480 | 190-250 | 170-190 | 2465-2755 | 182 | 1500 | 155 | 300-400 | 704 | 28-35 |
| KDD165 | 2790/6155 | 240/3480 | 200-260 | 170-190 | 2465-2755 | 205 | 1600 | 165 | 280-370 | 746 | 33-45 |
| KDD175 | 2995/6589 | 240/3480 | 200-260 | 160-180 | 2465-2755 | 247 | 1600 | 175 | 200-320 | 846 | 45-55 |
1. Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption, leading heat treatment, lower noise, long lifespan etc)
2. Easy to operate and maintenance.
3. Suitable for a wide range of excavator.
4. Versatile application including rock broken, paving road,
building demolition etc.
5. One-stop service.
Applications in cleaning the floating stones and the soil in the rock gaps in the role of excavating the foundation of the building.
|
|
