| Brand Name : | KonDaSin |
| Model Number : | KDKL 03 |
| Certification : | ISO9001 |
| Price : | Contact us |
| Supply Ability : | 30 Set/Sets per Month rock grapple |
| Delivery Time : | 15 days |
Wooden / Stone Grapple Excavator Attachment High Steel Toughness
Light Weight

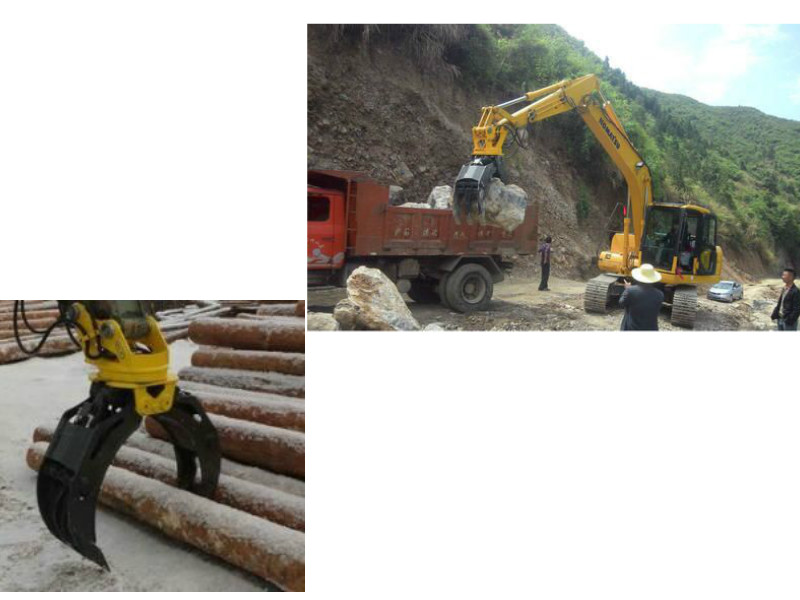

Wooden grapple: wood and large scraps handling, moving, loading and organizing.
Stone grapple: stone, steel and iron demolition, scrap handling, cleaning, moving, loading, moving, sorting and organizing materials in order.
The grapple easily grabs objects and does not need the excavator curl cylinder. No additional hydraulics are needed to operate the grapple. It is easy to install and easy to operate just using the hydraulics that are already on the machine. It has a 4 x 2 tine design which makes it quick and effective in sorting and sifting through waste and debris.
The wide opening width with light weight , not only outstanding performance in handing the iron bar but also maximize the operation efficiency with light weight.
Unlimited clockwise and anti-clockwise 360 rotatable.
Applications including handing of stones,wood,cane,pipes,disposable waste,landscaping works and many others.
| Model | Unit | KDKL 03 | KDKL 04 | KDKL 06 | KDKL 08 | KDKL 10 | KDKL 14 | KDKL 20 |
| Weight | Kg | 320 | 390 | 740 | 1380 | 1700 | 1900 | 2100 |
| Opening | M/m | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 | 2700 |
| Oil Pressure | kg/cm2 | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 | 180-200 |
| Operating flux | kg/cm2 | 170 | 180 | 190 | 200 | 210 | 250 | 250 |
| Cylinder Volume | L/min | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
| Suitable excavator | Ton | 4×2 | 4.5×2 | 8.0×2 | 9.7×2 | 12×2 | 12×2 | 14×2 |
| Applicable Excavator | Ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |
1. High quality material (Q345b) provide high steel toughness and good abrasive resistance
2. Special designed swing bearing for durability and big cylinder for more power.
3. Flexible choices dependent on job environment Operator can control the rotating speed.
4. Check valve cylinder , provide good reliability and safety.
5. Large open dimension , light weight with excellent performance
Applications in handing of stones,wood,cane,pipes,disposable waste,landscaping works and many others.
|
|
