Hydraulic Drilling Core Barrel , Roller Reamer Heat Treatment 600-3000mm Diameter

Kondasin International Co.,Ltd.
Contact Now
    Buy cheap Hydraulic Drilling Core Barrel , Roller Reamer Heat Treatment 600-3000mm Diameter from wholesalers

    Buy cheap Hydraulic Drilling Core Barrel , Roller Reamer Heat Treatment 600-3000mm Diameter from wholesalers
    • Buy cheap Hydraulic Drilling Core Barrel , Roller Reamer Heat Treatment 600-3000mm Diameter from wholesalers
    • Buy cheap Hydraulic Drilling Core Barrel , Roller Reamer Heat Treatment 600-3000mm Diameter from wholesalers
    • Buy cheap Hydraulic Drilling Core Barrel , Roller Reamer Heat Treatment 600-3000mm Diameter from wholesalers

    Hydraulic Drilling Core Barrel , Roller Reamer Heat Treatment 600-3000mm Diameter

    Ask Lasest Price
    Brand Name : KonDaSin
    Model Number : Core barrel
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 10 Pieces per Day
    Delivery Time : 7 working days
    Certification : ISO9001
    • Product Details
    • Company Profile

    Hydraulic Drilling Core Barrel , Roller Reamer Heat Treatment 600-3000mm Diameter

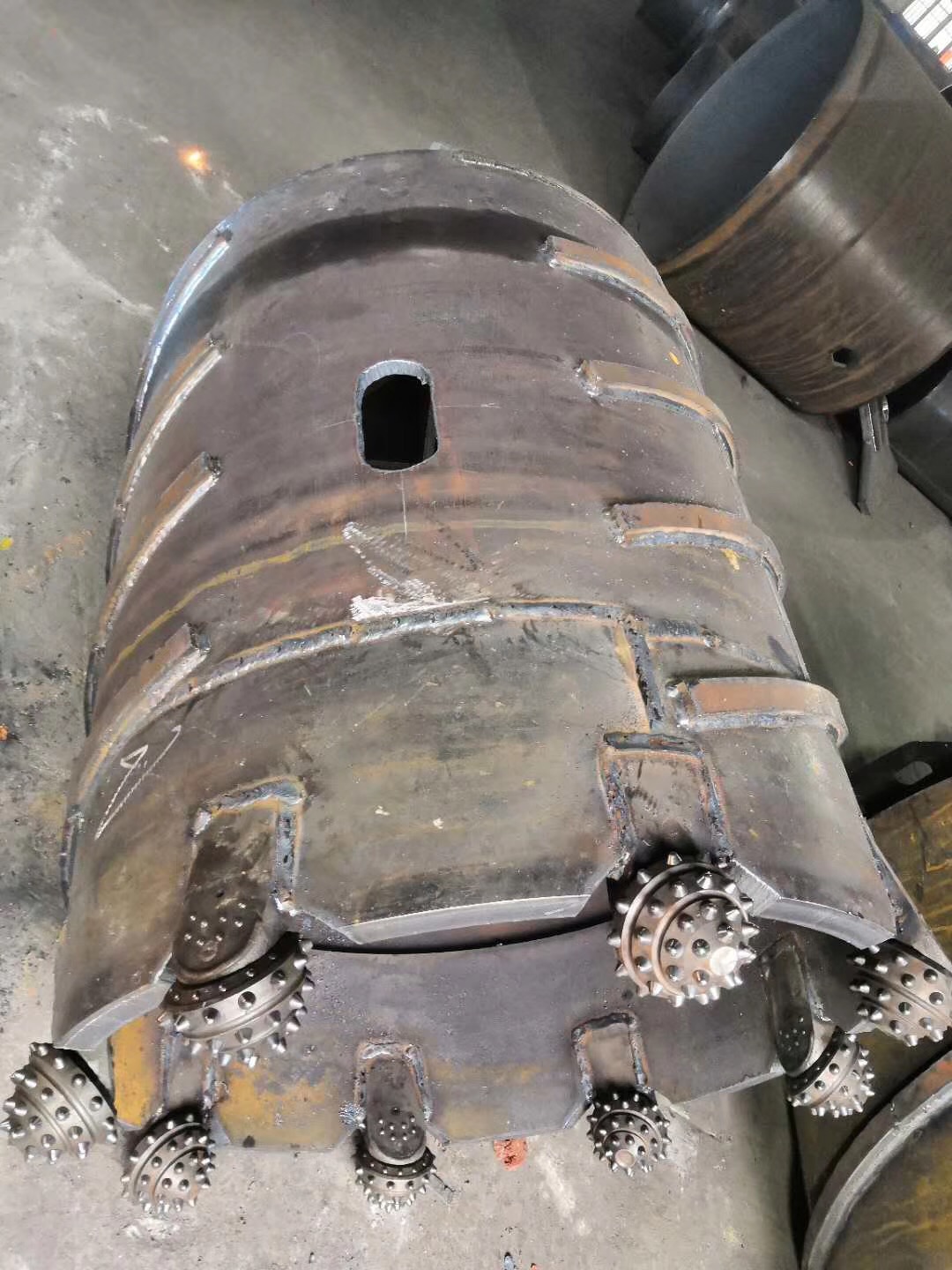

    Roller Bits Core Barrel Foundation Piling Heat Treatment Different Size

    Core Barrels with Roller Bits are used to cut an annular ring in rock or concrete or reinforced concrete,they adopt the high-carbon steel and special drilling bits angle to keep the drilling strength and efficiency.

    Drilling core barrel with roller bits drilling rock Core with hard facing strip for durable use life,they are used to cut a ring in rock or concrete, mostly to initiate the borehole.

    Core barrel with roller bits are applicable for very strong rock formations with compressive strength greater than 100Mpa.

    The most important advantage of a core barrel is that it assists to concentrate the torque and crowd force on a small ring of cutting teeth.

    The diameter series of buckets are standard sizes,other lengths and diameters can be supplied on request.

    ModelCutting Dia.Shell HIT.Shell THK.Stiffening Ring THK.Stiffening Ring HIT.Teeth No.Weight

    Core Barrel

    with

    Bullet Teeth

    φ600120016202006520
    φ800120016202009672
    φ9001200162020010750
    φ10001200162020011847
    φ120012001620200131010
    φ150012001620200161370
    φ160012001620200171493
    φ180010002020200191841
    φ20008002020200211852
    φ22008002020200232329
    φ25008002020200272705
    φ28008002020200303200
    φ30008002020200323800

    ModelSizeHeight

    Bucket

    Thickness

    Stiffening

    Ring Thickness

    Stiffening

    Ring Thickness

    No of

    teeth

    Weight

    Core Barrel

    with Roller Bits

    φ600120016202004545
    φ700120016202006635
    φ800120016202006725
    φ900120016202006810
    φ1000120016202008900
    φ1100120016202008990
    φ12001200162020091080
    φ12501200162020091120
    φ13001200162020091170
    φ140012001620200101270
    φ150012001620200101370
    φ160012001620200101460
    φ170010002020200111560
    φ180010002020200121830
    φ190010002020200121928
    φ20008002020200132050
    φ22008002020200142090
    φ25008002020200152420
    φ28008002020200163000
    φ30008002020200183500

    1. All related accessories in the barrel are subjected to "heat treatment" process, which increase the strength and wear resistance of the product.

    2. Cutting ring with roller bits and releases the internal stress of rock.

    3. Drilling with the method of rolling and squeezing can increases the anti-wear ability of the barrel.

    4. Small barrel facilitates the coring operation; large barrel performs stage breaking.

    5. Applicable for very strong rock formations with compressive strength greater than 100Mpa.

    Applicable for very strong rock formations with compressive strength greater than 100Mpa.
