Horizontal Underground Drilling Guided Boring Machine Cement Pipe Sewage Pipes
Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe.
It has the advantages of advanced performance, high efficiency and comfortable operation.They are the ideal machines for the construction of the water piping, gas piping,casing steel pipes or semi-tubular pipes for sewage pipes, rain and sewage diverting pipes and heat pipes.

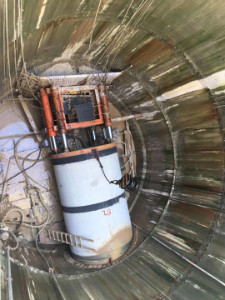

Pipe-Jacking tunneling machine is a new advanced
non-digging-equipment with high technology.
It combines multi-disciplinary technologies in one, such as the
machinery units, hydraulic system, electric controller, Laser
system, measuring device, etc.
Fit in soft soil, clay, sandy soil, gravel soil, hard soil, etc. wide range of soil body.
| DN1500 | ||||
| Length | 4300mm | |||
| Width | 1820mm | |||
| Drilling diameter | 1500mm | |||
| Cutter Head | Motor Power | 2*30KW | ||
| Revolution Speed | 0-2.5RPM | |||
| Rated Torque | 800KN.m | |||
| Guiding System | Cylinder No. | 8 | ||
| Thrust | 100T | |||
| Max. Steering Angle | 3° | |||
| Side-Slurry line diam. | 100mm | |||
| Main Jacking system(YG200t/1800) | Rated Jacking Speed | 0-200mm/min | ||
| Thrust | 200t | |||
| Work Pressure | 31.5MPa | |||
| Stroke | 1800mm | |||
| Total Power Of Cutter Head | 65KW | |||
| Control | Remote PLC Control(Touch Screen) | |||
| Layers | Normal soil, sand, clay | |||
| Hydraulic pumping station(YZ-1000) | ||||
| Motor power | 2*15kW | |||
| Maximum pressure | 31.5Mpa | |||
| Displacement | 0~50L | |||
| Volume | 1000L | |||
1. Engine energy saving and environmental protection, strong power.
2. Operation is simple, performance is reliable, the whole process maintains the horizontal straightness ± 50mm,greatly improving the construction efficiency.
3. Fit for trenchless underground pipe laying.
4. Easily control above ground, continuous work.
5. Many key components adopt international famous products to guarantee the quality.
For trechless underground pipe laying projects, eg. sewage, water supply, discharging projects, cables, tunnel.Suitable for geological construction of sand, silt, hard soil and clay.
|
|
